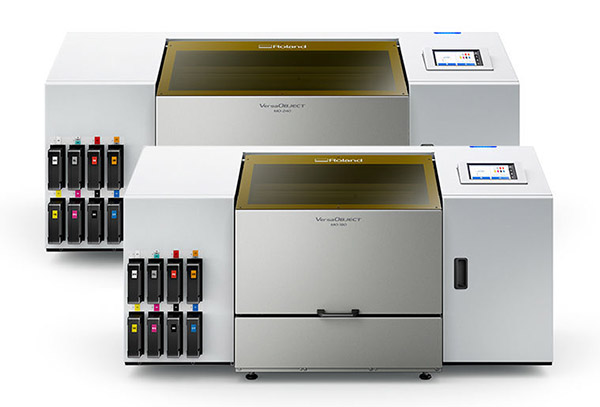

MO-Series at a glance:

Ideal for on-demand print customization of one or multiple items
Print directly on materials up to 8-inches thick, including leather and fabric, ceramics, canvas art, etc.
Easy positioning fixture, start timer function, head refresher and other new features to streamline your print process

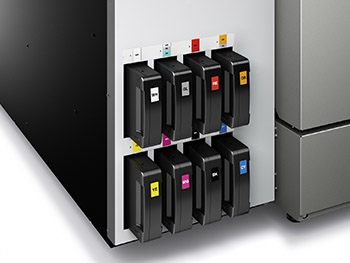

Economical UV5 ink in 750ml pouches saves money
Automatic height sensor for fast set-up

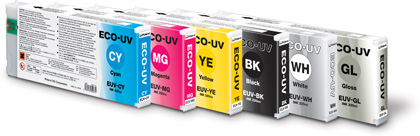

UV5 Ink vibrancy and economy

Available in CMYK, White and Gloss, ECO-UV ink offers the following benefits:

750ml bags are 28% less than 500ml cartridges
Instantly dries to produce mess-free, wide color gamut results
20% larger color gamut with the addition of orange and red ink.
Produces durable indoor graphics with scratch and chemical resistance
White ink is 42% less than 220ml cartridges

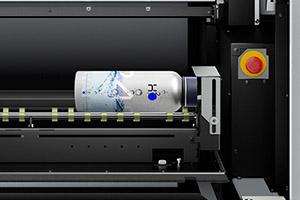

New Rotary Option

The new optional Rotary Rack attachment for the MO-240 is quick and easy to install and makes printing directly onto bottles and other cylindrical objects easier than ever.

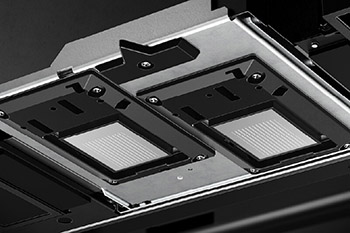

New Printheads

The MO-240 comes with a new dual staggered printheads with 8 channels each. These deliver exceptional print quality and much faster speeds.

Lower ink costs with UV5 Inks

Roland DG's EUV5 ink is renowned for its broad material compatibility and excellent adhesion. With just one ink formulation, you can print onto a variety of substrates, increasing your ability to adapt to changing market demands.

The MO-240 also allows you to go beyond flat substrates thanks to built-in technologies including ‘distance mode’ printing and optional extras such as the rotary printing unit. With these features you can go even further with direct printing and move towards new opportunities.

Orange and Green options for added vibrancy and color accuracy

Orange and Green process color options allow you to hit specific Orange to Red areas and Blue to Green areas with approximately 260 new spot color references now available in the new Roland DG Color Library. Specific Pantone® or DIC colors that were previously difficult to match can now be easily achieved.

Expand your Color Gamut with "True Rich Color 2"

Reach new areas of color, including purples, reds, greens, and other challenging hues— elevating all your print output with True Rich Color 2. Improve reproduction of specific brand colors and combine
neutral grays, smooth gradations, and natural skin tones to produce color quality of incomparable realism and complexity.

Model			MO-240	MO-180
Printing Method			Piezo ink-jet method
Attachable objects to be printed on	Width		Max. 25.1 in. (640 mm)	Max. 19.2 in. (488 mm)
	Length		Max. 19.2 in. (488 mm)	Max. 13.1 in. (335 mm)
	Thickness		Max. 8 in. (204 mm)	Max. 8 in. (204 mm)
	Weight		Max. 17.6 lb. (8 kg) (When using a vacuum table: max. 8.8 lb. [4 kg])
Printing width/printing length (width x length)			Max. 24 in. × 18 in. (610 mm × 458 mm)	Max. 18 in. × 12 in. (458 mm × 305 mm)
Ink	Type		ECO-UV (EUV5P) 750 ml pouch, UV-Ink (EUV-A) 750 ml pouch, UV-Ink (V-BOND) 750 ml pouch
	Colors		ECO-UV (EUC5P) Eight colors (Cyan, Magenta, Yellow, Black, Gloss, White, Orange, Red) Seven colors (Cyan, Magenta, Yellow, Black, White, Orange, Red) and Primer Seven colors (Cyan, Magenta, Yellow, Black, Gloss, White, Red) and Primer Seven colors (Cyan, Magenta, Yellow, Black, White x2, Orange and Red） Six colors (Cyan, Magenta, Yellow, Black, Gloss, White x2) and Primer Six colors (Cyan, Magenta, Yellow, Black, Gloss x2, and White x2） Four colors (Cyan, Magenta, Yellow, Black) x2 UV-Ink (EUV-A) Six colors (Cyan, Magenta, Yellow, Black, Gloss x2, and White x2） UV-Ink (V-BOND) Six colors (Cyan, Magenta, Yellow, Black, Gloss, and White)
Ink-curing unit			Built-in UV-LED lamp
Printing resolution (dots per inch)			Max. 1,200 dpi
Connectivity			Ethernet (100BASE-TX/1000BASE-T, automatic switching)
Power-saving function			Automatic sleep feature
Power requirements			100–240 Va.c. 50/60 Hz 3.5A
Power consumption		During operation	Approx. 290 W
		Sleep mode	Approx. 70 W
Acoustic noise level		During operation	60 dB (A) or less
		During standby	49 dB (A) or less
Dimensions (width x depth x height)			63.1 in. × 49.9 in. × 30.0 in. (1,601 mm × 1,267 mm × 760 mm)	57.1 in. × 37.9 in. × 30.0 in. (1,449 mm × 961 mm × 760 mm)
Weight			465.18 lb. (211 kg)	383.61 lb. (174 kg)
Environment		*During operation(1)**	Temperature: 68 to 89.6 °F (20 to 32 °C), Humidity: 35 to 80 %RH (no condensation)
		Not operating	Temperature: 41 to 104 °F (5 to 40 °C), Humidity: 20 to 80 %RH (no condensation)
Included items			Power cord, cleaning liquid, drain bottle, User's Manual, software (VersaWorks, Roland DG Connect) etc.
