BD Series printers are the perfect solution for those businesses that require a cost-effective, reliable, and easy-to-use desktop option that can easily provide branding and endless unique decoration options to almost any object.

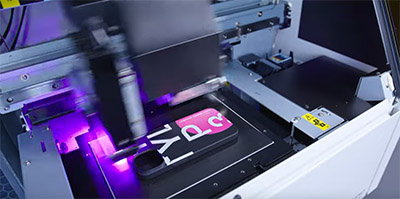

Print vivid, detailed designs directly onto objects up to 4” thick - enabling profitable personalization of everything from awards and phone cases to industrial parts.
The new TrueVIS TY-30 has a 7 inch touchscreen display which offers a better user experience as well as added functionality such as animations and tutorials for many of the maintenance and operational functions.
| TY-300 | ||
|---|---|---|
| Printing Method | Piezo ink-jet method | |
| Media | Width | 7.2 to 30 in (182 to 762 mm) |
| Thickness | Maximum 39.3 mil (1.0 mm) with liner for printing, Maximum 15.7 mil (0.4 mm) with liner and 8.6 mil (0.22 mm) without liner for cutting | |
| Roll outer diameter | Maximum 9.84 in (250 mm) | |
| Roll weight | 66.1 lb (30 kg) | |
| Core diameter | 3 in (76.2 mm) or 2 in (50.8 mm) | |
| Printing/cutting width (*1) | Maximum 28.9 in (736 mm) | |
| Ink | Type | S-PG2 INK 500 ml cartridge |
| Colors | Five colors (cyan, magenta, yellow, black, and white) (2 cartridges) | |
| Printing resolution | Maximum 1,200 dpi | |
| Cutting speed | 0.39 to 11.8 in/s (10 to 300 mm/s) | |
| Blade force (*2) | 30 to 500 gf | |
| Blade type | CAMM-1 series blade | |
| Blade offset | 0.0 to 59 mil (0.000 to 1.500 mm) | |
| Software resolution (cutting) | 0.98 mil/step (0.025 mm/step) | |
| Media heating system (*3) | Print heater set temperature: 86 to 113°F (30 to 45°C), Dryer set temperature: 86 to 122°F (30 to 50°C) | |
| Connectivity | Ethernet (100BASE-TX/1000BASE-T, automatic switching) | |
| Power-saving function | Automatic sleep feature | |
| Rated input | 100-120 / 220-240 Vac 50/60 Hz 6.4/3.0 A | |
| Power consumption | During operation | Approx. 840W |
| Sleep mode | Approx. 70W | |
| Acoustic noise level | During operation | 63 dB (A) or less |
| During standby | 58 dB (A) or less | |
| Dimensions (Width x Depth x Height) | 80 in x 29.5 in x 55.8 in (2,032 mm x 748 mm x 1,415 mm) | |
| Weight | 298 lb (135 kg) | |
| Environment | During operation (*4) | 68 to 82.4°F (20 to 28°C), Humidity: 40 to 60% RH (no condensation) |
| Not operating | 41 to 104°F (5 to 40°C), Humidity: 20 to 80% RH (no condensation) | |
| Included Items | Dedicated stand, Power cord, Media holders, Separating knife, Replacement blade, Cleaning liquid, Drain bottle, User's Manual, Software（VersaWorks, Roland DG Connect), etc. | |
